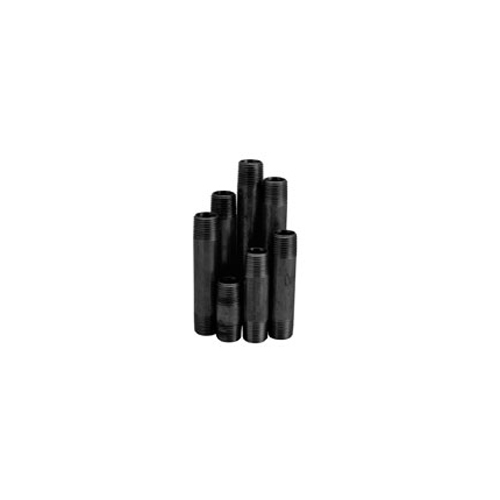

WPHY 42 Carbon Steel Pipe Nipples

Get a Price/Quote

WPHY 42 Carbon Steel Pipe Nipples Specification

Yield Strength
290 MPa

Connection Type
Male Threaded / Butt Weld

Diameter
Nominal Bore/Specified by Standard

Tolerance
0.5 mm

Temperature Range
-30C to 593C

Flexibility
Rigid

Sealing Type
Threaded Seal / Welded Joint

Thread Type
NPT / BSPT / Custom

Tensile Strength
415 MPa

Bend Radius
N/A (Straight Pipe Nipple)

Coating Type
Black Paint / Anti-Corrosive Coating

Product Type
Pipe Nipples

Material
WPHY 42 Carbon Steel

Connection
Threaded / Welded

Shape
Cylindrical

Standard
ASTM A860 / MSS SP 75

Surface Treatment
Black Painted / Anti-Rust Oil

Outer Diameter
1/2 48 (DN15 DN1200)

Section Shape
Round

Length
100 mm 6000 mm

Thickness
3 mm 10 mm

Color
Black

Usage
Oil & Gas, Water, Steam, Petrochemical, Power Plants

Rated Pressure
Sch 10 to Sch 160/Class 150 to 2500

Application
Pipeline Connection, Fluid Transfer

Material Grade
WPHY 42

End Finish
Plain End (PE), Beveled End (BE), Threaded End (TE)

Heat Treatment
Normalizing, Quenching & Tempering (As per standard/applicable)

Corrosion Resistance
Good, with Optional Extra Coatings

Hardness
187 HB

Packing Type
Wooden Cases / Bundles / Pallets

Manufacturing Process
Seamless / Welded

About WPHY 42 Carbon Steel Pipe Nipples

OUR EXPORT MARKET: Dubai, UAE, Malaysia, South Africa, Iran, Singapore, Canada, Colombia

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 42 Fittings Size	Seamless:from 1/2 to 24
WPHY 42 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 42 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 42 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 42 Fittings Type	Seamless / Welded / Fabricated
WPHY 42 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 42 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Optimized for High-Pressure Pipeline Systems

WPHY 42 Carbon Steel Pipe Nipples are engineered to sustain high-pressure and temperature conditions typical of industrial settings. Their superior mechanical properties and broad size range make them adaptable for various pipeline connections in oil & gas, water supply, steam lines, and petrochemical transfer operations. Enhanced corrosion resistance and heat treatment further ensure long service life and dependable performance.

Versatile Manufacturing and Customizable Finishes

These pipe nipples are produced through advanced seamless or welded manufacturing processes, meeting international standards such as ASTM A860 / MSS SP 75. Customers can select from plain, beveled, or threaded ends, with further flexibility in coatings-black paint or anti-corrosive options-suited to specific installation requirements. Packing and surface treatments are tailored for safe transport and maximum durability.

FAQ's of WPHY 42 Carbon Steel Pipe Nipples:

Q: How are WPHY 42 Carbon Steel Pipe Nipples manufactured?

A: WPHY 42 pipe nipples are produced using seamless or welded processes following ASTM A860 / MSS SP 75 standards. They can undergo heat treatments such as normalizing, quenching, and tempering, tailored to desired mechanical properties and application requirements.

Q: What packing options are available for these pipe nipples?

A: To ensure safe delivery, WPHY 42 Carbon Steel Pipe Nipples are packed in wooden cases, bundles, or pallets. This keeps products protected from damage and contamination during storage and transit.

Q: When should I choose a plain, beveled, or threaded end finish?

A: Plain Ends (PE) are suitable for welding or slip-on connections, Beveled Ends (BE) are ideal for butt welding with other pipes, and Threaded Ends (TE) cater to installations using male threaded seals-such as NPT, BSPT, or custom threads, facilitating quick assembly and disassembly.

Q: Where are these pipe nipples commonly used?

A: These nipples are widely used in pipeline systems for oil & gas, water, steam, petrochemicals, and power plants. Their reliability in joining pipes and ability to withstand harsh operating conditions make them a preferred choice in critical infrastructure.

Q: What are the benefits of optional extra coatings?

A: Additional coatings, like black paint or specialized anti-corrosive layers, significantly enhance the corrosion resistance of the pipe nipples. This adds durability, extends service life, and helps maintain structural integrity in aggressive or moist environments.

Q: How do I ensure compatibility with different connection types?

A: WPHY 42 Carbon Steel Pipe Nipples come with various connection options such as male threading or butt welding. The thread type (NPT, BSPT, or custom) and end finish can be specified according to your installation requirements for seamless integration into your pipeline system.
