WPHY 42 Pipe Fittings

• Application
• other, Pipeline Connection, Fluid Transfer

• Bend Radius
• N/A (Straight Pipe Nipple)

• Coating Type
• Black Paint / Anti-Corrosive Coating

• Color
• Black

• Connection
• Other, Threaded / Welded

• Connection Type
• Male Threaded / Butt Weld

• Diameter
• Nominal Bore/Specified by Standard

• Flexibility
• Rigid

• Length
• 100 mm 6000 mm

• Material
• Other , WPHY 42 Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 48 (DN15 DN1200)

• Product Type
• Other, Pipe Nipples

• Rated Pressure
• Sch 10 to Sch 160/Class 150 to 2500

• Sealing Type
• Threaded Seal / Welded Joint

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A860 / MSS SP 75

• Surface Treatment
• Other, Black Painted / Anti-Rust Oil

• Temperature Range
• -30C to 593C

• Tensile Strength
• 415 MPa

• Thickness
• 3 mm 10 mm

• Thread Type
• NPT / BSPT / Custom

• Tolerance
• 0.5 mm

• Usage
• Oil & Gas, Water, Steam, Petrochemical, Power Plants

• Yield Strength
• 290 MPa

• Application
• other, Pipeline transportation, Piping Systems

• Bend Radius
• 3D, 5D, Custom as specified

• Coating Type
• Black Paint, Anti-Corrosion Coating

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• Up to 48 inches

• Flexibility
• Rigid

• Length
• Custom or as per requirement

• Material
• Other , WPHY 42 Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 inch 48 inches (DN15 DN1200)

• Product Type

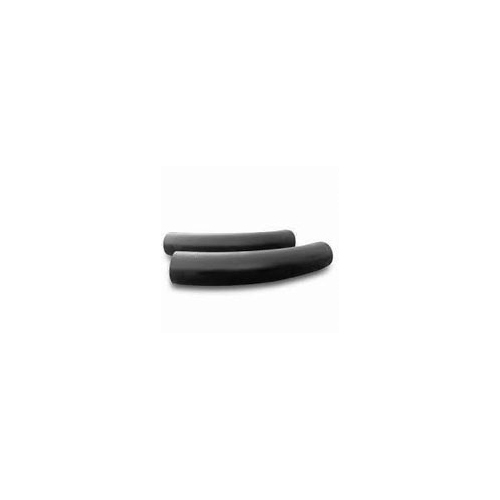

• Other, Pipe Bend and Piggable Bend

• Rated Pressure
• Up to Class 2500

• Sealing Type
• Welded joint

• Section Shape
• Round

• Shape
• Other, Bend (Curved)

• Standard
• Other, ASTM A860 / MSS-SP-75

• Surface Treatment
• Other, Black Painted, Anti-Rust Oil Coating

• Temperature Range
• -20C to 120C

• Tensile Strength
• 415 MPa

• Thickness
• SCH40 to SCH160 or as required

• Tolerance
• 0.5 mm

• Usage
• Pipeline, Oil & Gas, Petrochemical, Industrial

• Yield Strength
• 290 MPa

• Application
• other, Petrochemical, Power Plant, Oil & Gas Industry, Water Pipeline

• Bend Radius
• 2D, 3D (Customizable)

• Coating Type
• Black Paint / Rust Preventive Coating

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld

• Diameter
• Reducing (Various sizes available)

• Flexibility
• Rigid

• Length
• Custom as per fitting, typically 2D-3D radius

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• From 1/2 to 48 (nominal sizes)

• Product Type

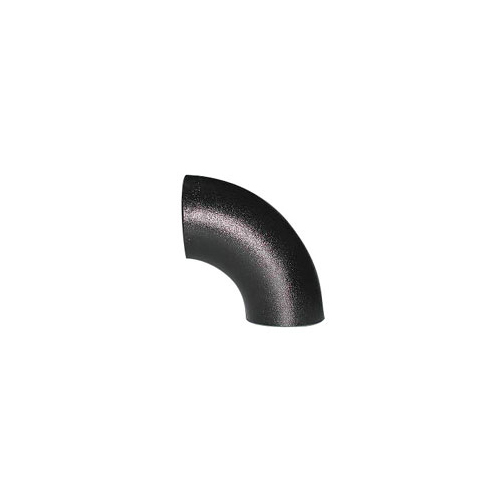

• Other, Reducing Elbow

• Rated Pressure
• Class 150 to 900 (as per requirement)

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Elbow (Angular, Reducing)

• Standard
• Other, ASTM A860 MSS SP 75

• Surface Treatment
• Other, Black Painted / Anti-rust Coated

• Temperature Range
• -29C to +593C

• Tensile Strength
• 415 MPa

• Thickness
• SCH 20 to SCH XXS or as required

• Thread Type
• N/A (Butt Weld End)

• Tolerance
• 1% or as per standard

• Usage
• Pipeline, Gas, Oil & Water Transport

• Yield Strength
• 290 MPa

• Application
• other, Fluid and Gas Transportation

• Bend Radius
• Short Radius (SR), Radius = 1 x pipe diameter

• Coating Type
• Black Paint/Oil

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 1/2 Inch to 48 Inch

• Flexibility
• Rigid

• Length
• Custom/Standard (depends on diameter and schedule)

• Material
• Other , WPHY 42 Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 DN1200)

• Product Type

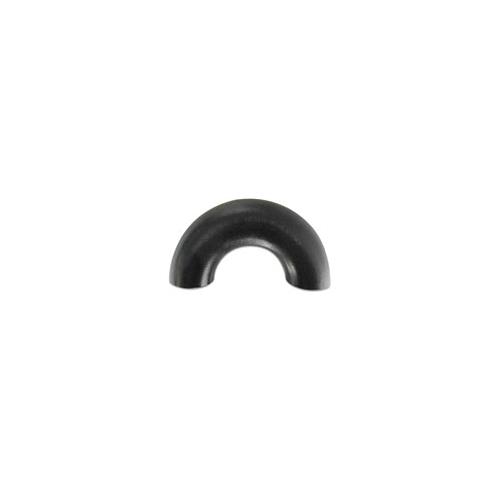

• Other, 180 Degree SR Return Bend

• Rated Pressure
• Schedule/STD/Class based on wall thickness

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, U Shape

• Standard
• Other, ASME B16.9 / MSS SP-75

• Surface Treatment
• Other, Black Painted, Anti-corrosive Oil Coated

• Temperature Range
• -20C to 450C

• Tensile Strength
• 415 MPa (minimum)

• Thickness
• Sch 10 to Sch 160 (as per requirement)

• Tolerance
• 0.5 mm

• Usage
• Pipeline, Oil & Gas, Petrochemical, Power Plants

• Yield Strength
• 290 MPa (minimum)

• Application
• other, Pipeline systems, High-pressure applications

• Bend Radius
• Short Radius (SR) & Long Radius (LR)

• Coating Type
• Black Paint / Anti-corrosion

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Butt-Weld

• Diameter
• 1/2 inch to 48 inch

• Flexibility
• Rigid

• Length
• Custom / as per requirement

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 6000 PSI or as per client spec

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM A860, MSS SP 75, ASME B16.9

• Surface Treatment
• Other, Black Painted / Anti-rust Oil Coated

• Temperature Range
• -20C to 120C

• Tensile Strength
• 415 MPa Min

• Thickness
• Sch 20 to Sch XXS or as specified

• Thread Type
• Not Threaded (Butt-weld)

• Tolerance
• 1% or as per standard

• Usage
• Pipe Fittings for Oil, Gas, Water, Petrochemical

• Yield Strength
• 290 MPa Min

• Application
• other, Oil, Gas, Petrochemical, Power Plant, Pipeline Engineering

• Bend Radius
• As Per Standard

• Coating Type
• Black Paint or Rust Proof Coating

• Color
• Black

• Connection
• Other, Buttweld

• Connection Type
• Welded

• Diameter
• Custom/As ordered

• Flexibility
• Rigid

• Length
• As per standard or customer requirement

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 inch to 48 inch (DN15-DN1200)

• Product Type
• Other, Tee Fitting

• Rated Pressure
• Class 150 2500

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Tee (T-shape)

• Standard
• Other, ASTM A860 / MSS SP 75

• Surface Treatment
• Other, Black Painting / Anti-rust Coating

• Temperature Range
• -20C to +120C

• Tensile Strength
• 415 MPa (Min)

• Thickness
• Sch40, Sch60, Sch80, Sch120 (Varies by Specification)

• Thread Type
• Non-threaded (Buttweld)

• Tolerance
• 0.5 mm

• Usage
• Pipe Connection

• Yield Strength
• 290 MPa (Min)

• Application
• other, Oil, Gas, Petrochemical, Power

• Bend Radius
• As per dimension & standard

• Coating Type
• Black Paint / Oiled

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• Varies by specification

• Flexibility
• Rigid

• Length
• Customizable / As per standard

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15-DN1200)

• Product Type

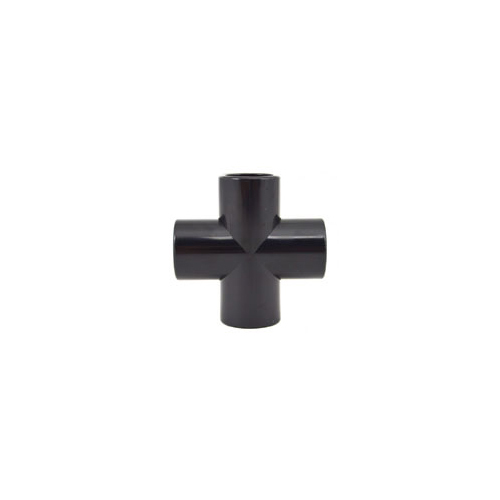

• Other, Cross Fitting

• Rated Pressure
• Sch 10 to Sch 160 / XXS

• Sealing Type
• Welded (non-sealing)

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, ASTM A860 / MSS SP-75

• Surface Treatment
• Other, Black Painted / Anti-Rust Oil

• Temperature Range
• -46C to 600C

• Tensile Strength
• 414 MPa

• Thickness
• 3 - 22 mm

• Thread Type
• Not threaded

• Tolerance
• 0.5 mm

• Usage
• Pipeline Systems, Oil & Gas, Petrochemical

• Yield Strength
• 290 MPa

• Application
• other, Petrochemical, Oil & Gas, Power Plant, Water Supply, Petro-Refinery

• Coating Type
• Epoxy / Black Oil Painted

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Up to 48 inches

• Flexibility
• Rigid

• Length
• As per specification or custom

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type

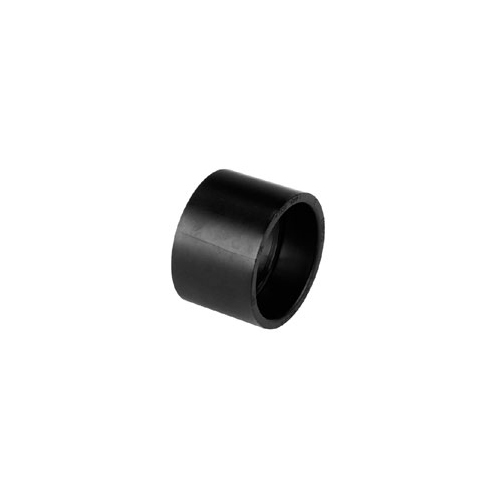

• Other, Pipe Coupling

• Rated Pressure
• Sch 40 / Sch 80 / Sch 160 / XXS

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A860 WPHY 42

• Surface Treatment
• Other, Black Painted / Anti-Rust Coated

• Temperature Range
• -20C to 450C

• Tensile Strength
• 415 MPa (minimum)

• Thickness
• Schedule 40 / 80 (customizable)

• Thread Type
• Not Threaded

• Tolerance
• 0.5 mm

• Usage
• Joining Pipes

• Yield Strength
• 290 MPa (minimum)

• Application
• other, High-pressure fluid transmission

• Bend Radius
• Long Radius (1.5D)

• Coating Type
• Black Paint, Optional Epoxy

• Color
• Black

• Connection
• Other, Buttweld

• Connection Type
• Welded

• Diameter
• 1/2 NB to 48 NB

• Flexibility
• Rigid

• Length
• Custom / As per customer specification

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type

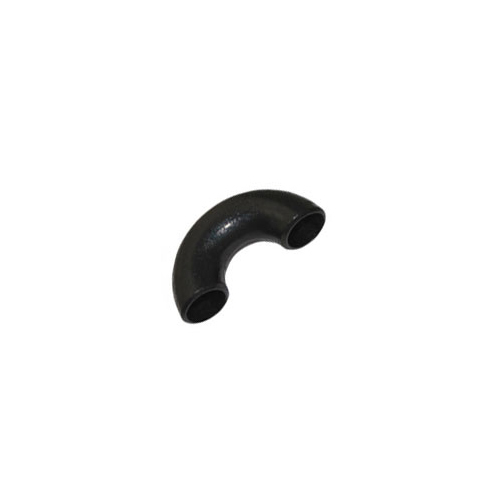

• Other, 180 LR Return Bend

• Rated Pressure
• SCH 10 to SCH 160 / XXS

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, U Bend

• Standard
• Other, ASTM A234 WPB / MSS SP-75

• Surface Treatment
• Other, Black Painted / Anti-rust Coated

• Temperature Range
• -20C to 593C

• Tensile Strength
• 415 MPa

• Thickness
• 3 mm to 40 mm (varies by size)

• Tolerance
• 0.5 mm

• Usage
• Pipeline systems, Oil & Gas, Petrochemical

• Yield Strength
• 290 MPa

• Application
• other, Oil & Gas, Petrochemicals, Power Plants, Industrial Piping

• Bend Radius
• As per standard or design

• Coating Type
• Black Paint / Rust-Proof Oil

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld End

• Diameter
• Customizable as per requirement

• Flexibility
• Rigid

• Length
• Standard or Customized

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 - DN1200)

• Product Type

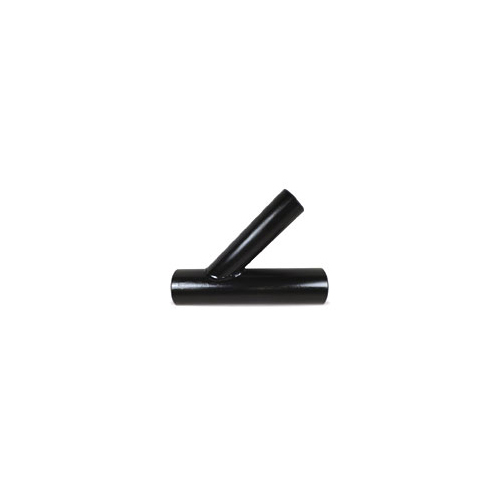

• Other, Lateral Pipe Fitting

• Rated Pressure
• Class 150 to 2500

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Lateral (Y-Shaped)

• Standard
• Other, ASME B16.9 / MSS-SP 75

• Surface Treatment
• Other, Black Painted / Anti-Rust Oil

• Temperature Range
• -29C to 593C

• Tensile Strength
• 415 MPa

• Thickness
• Sch 10 to Sch 160

• Tolerance
• 0.5 mm

• Usage
• Pipeline Systems, Oil & Gas, Petrochemical

• Yield Strength
• 290 MPa

• Application
• other, Oil & Gas, Petrochemical, Power, Water Pipeline

• Bend Radius
• 1.5D or Custom

• Coating Type
• Protective Coated, Black/Oil Coated

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Butt weld

• Diameter
• DN15-DN1200

• Flexibility
• Rigid

• Length
• As per standard

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15-DN1200)

• Product Type
• Other, 45 Degree Elbow

• Rated Pressure
• Sch 10 to Sch 160, STD, XS, XXS

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Bend)

• Standard
• Other, ASTM A860 MSS SP 75

• Surface Treatment
• Other, Black Painted or Anti-rust Coated

• Temperature Range
• -20C to 593C

• Tensile Strength
• 415 MPa (min)

• Thickness
• Sch 10s to Sch 160

• Tolerance
• 0.5mm

• Usage
• Pipe Fitting for Piping Systems

• Yield Strength
• 290 MPa (min)

• Application
• other, Oil, Gas, Water, Petrochemical Industries

• Coating Type
• Epoxy / Black Paint

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welding

• Diameter
• Specified as per Requirement

• Flexibility
• Rigid

• Length
• Custom / Standard

• Material
• Other , WPHY 42 Carbon Steel

• Material Grade
• Grade 42

• Outer Diameter
• 2 to 48

• Product Type
• Other, Reducer

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Concentric / Eccentric

• Standard
• Other, ASTM A860

• Surface Treatment
• Other, Black Paint / Anti-Rust Coating

• Temperature Range
• -46C to 450C

• Tensile Strength
• 415 MPa min

• Thickness
• Schedule 20 to Schedule 160

• Tolerance
• 0.5 mm

• Usage
• Pipeline Systems

• Yield Strength
• 260 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power Plants, Water Supply

• Bend Radius
• Standard Stub End Design

• Coating Type
• Black Paint / Epoxy Coated

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld

• Diameter
• 1/2 to 48

• Flexibility
• Rigid

• Length
• As per ASME/ANSI Standard or Custom

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 DN1200)

• Product Type
• Other, Stub End

• Rated Pressure
• ANSI 150# to 2500#

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Stub End (Short/Long Pattern)

• Standard
• Other, ASME B16.9 / MSS-SP-43

• Surface Treatment
• Other, Black Coated / Anti-Rust Oil

• Temperature Range
• -20C to 593C

• Tensile Strength
• 415 MPa

• Thickness
• Sch 10, Sch 40, Sch 80 or as required

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting, Pipe End Connection

• Yield Strength
• 290 MPa

• Application
• other, Pipe End Sealing, Pressure Vessels, Fluid Transportation

• Bend Radius
• As per standard

• Coating Type
• Black Oxide or Customized

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• DN15DN1200

• Flexibility
• Rigid

• Length
• As per standard or custom requirement

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 inch to 48 inch

• Product Type
• Other, End Cap

• Rated Pressure
• SCH 10 to SCH 160, XXS

• Sealing Type
• Metal-to-metal

• Section Shape
• Other, Elliptical

• Shape
• Round

• Standard
• Other, ASTM A860 / MSS-SP 75

• Surface Treatment
• Other, Black Painted / Anti-rust Coated

• Temperature Range
• -20C to 120C

• Tensile Strength
• 415 MPa min

• Thickness
• 3 mm to 50 mm

• Tolerance
• 0.5 mm

• Usage
• Pipeline, Oil & Gas, Petrochemical, Water Supply

• Yield Strength
• 290 MPa min

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Supply

• Coating Type
• Black Paint / Anti-Rust Oil

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Butt Welded

• Diameter
• As required per dimensions

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type
• Other, Reducing Cross Fitting

• Rated Pressure
• Up to SCH160

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, ASTM A860 / MSS SP-75 / ASME B16.9

• Surface Treatment
• Other, Black Painted / Anti-rust Oil

• Temperature Range
• -20C to 120C

• Tensile Strength
• 415 MPa

• Thickness
• Sch 10 to Sch 160 / STD / XS / XXS

• Thread Type
• Not Applicable (Butt Welded)

• Tolerance
• 0.5 mm

• Usage
• Pipeline Connection

• Yield Strength
• 290 MPa

• Application
• other, High-pressure and high-temperature piping

• Bend Radius
• 1.5D, 3D, or as specified

• Coating Type
• Black Paint / Epoxy

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 21.3 mm - 1219 mm

• Flexibility
• Rigid

• Length
• Customized as required

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• 1/2 inch to 48 inch (21.3 mm - 1219 mm)

• Product Type
• Other, Long Radius Bend

• Rated Pressure
• Up to SCH160 / XXS

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow/Bend

• Standard
• Other, ASTM A860 / MSS-SP-75

• Surface Treatment
• Other, Black Painted / Antirust Oil

• Temperature Range
• -20C to 600C

• Tensile Strength
• 415 MPa minimum

• Thickness
• 3.0 mm - 20 mm

• Tolerance
• 0.5 mm

• Usage
• Pipeline systems, Oil & Gas, Petrochemical

• Yield Strength
• 290 MPa minimum

• Application
• other, Oil & Gas, Petrochemical, Power, Water Treatment

• Coating Type
• Black Paint / Anti-corrosion

• Color
• Black

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 50 mm to 1500 mm

• Flexibility
• Rigid

• Length
• Custom Lengths Available

• Material
• Carbon Steel

• Material Grade
• WPHY 42

• Outer Diameter
• Up to 1500 mm

• Product Type
• Other, Forged and Plate Cut Rings

• Rated Pressure
• Up to SCH160

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A860 / MSS SP 75

• Surface Treatment
• Other, Black Painted / Anti-rust Coated

• Temperature Range
• -46C to +400C

• Tensile Strength
• 415 MPa Min

• Thickness
• 10 mm to 100 mm

• Tolerance
• 0.5 mm

• Usage
• Pipeline, Industrial, Mechanical

• Yield Strength
• 290 MPa Min
