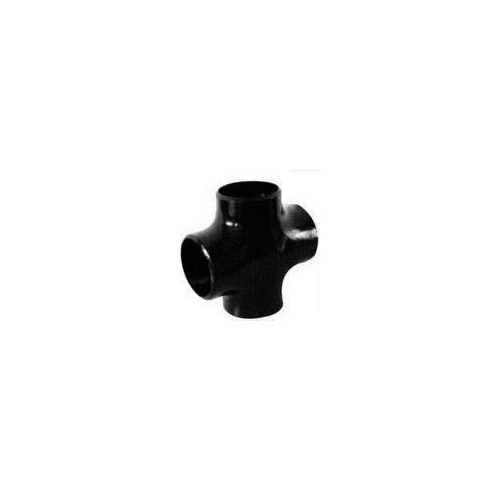

WPHY 42 Carbon Steel Reducing Cross Fitting

Send Inquiry

Request To Call Back

WPHY 42 Carbon Steel Reducing Cross Fitting

Get a Price/Quote

WPHY 42 Carbon Steel Reducing Cross Fitting Specification

Tensile Strength
415 MPa

Temperature Range
-20C to 120C

Tolerance
0.5 mm

Connection Type
Butt Welded

Diameter
As required per dimensions

Flexibility
Rigid

Coating Type
Black Paint / Anti-Rust Oil

Sealing Type
Metal-to-Metal

Thread Type
Not Applicable (Butt Welded)

Yield Strength
290 MPa

Product Type
Reducing Cross Fitting

Material
Carbon Steel

Connection
Butt Weld

Shape
Cross

Standard
ASTM A860 / MSS SP-75 / ASME B16.9

Surface Treatment
Black Painted / Anti-rust Oil

Outer Diameter
1/2 to 48 (DN15 to DN1200)

Section Shape
Round

Length
Customizable

Thickness
Sch 10 to Sch 160 / STD / XS / XXS

Color
Black

Usage
Pipeline Connection

Rated Pressure
Up to SCH160

Application
Oil & Gas, Petrochemical, Power Plant, Water Supply

Material Grade
WPHY 42

Manufacturing Method
Seamless / Welded

End Type
Bevel End

Impact Value
27J @ -20C

Testing
100% Radiography / Hydro Test

Lead Time
2-4 Weeks

Corrosion Resistance
High

Packing
Wooden Cases or Pallets

Hardness
187 HB

About WPHY 42 Carbon Steel Reducing Cross Fitting

Product: Buttweld Reducing Cross

Sizes: 1/2 TO 36 (SEAMLESS UPTO 24) (WELDED 8 TO 36 )

Standards: ANSI B 16.9
ASTM A403 ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings API 590-605
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel Buttwelding Short Radius Elbows and Returns
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)

Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 42 Fittings Size	Seamless:from 1/2 to 24
WPHY 42 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 42 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 42 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 42 Fittings Type	Seamless / Welded / Fabricated
WPHY 42 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 42 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Reliable Performance in Critical Pipelines

WPHY 42 Carbon Steel Reducing Cross Fittings are designed to efficiently merge or distribute pipeline flows across various industries, including oil & gas and petrochemicals. With high tensile and yield strength, they withstand demanding operational pressures and maintain integrity even at low temperatures. These fittings are available in both seamless and welded forms, offering flexibility to cater to specific project needs.

Superior Corrosion Resistance and Testing Assurance

Each reducing cross fitting undergoes 100% radiography or hydro testing, confirming the highest standards of structural integrity and leak-proof performance. They are coated with black paint or anti-rust oil, maximizing corrosion resistance, even in harsh environments. Adherence to international standards ensures reliable and long-lasting service.

Versatile Customization and Application

With outer diameters from 1/2 to 48 inches and customizable lengths, these fittings accommodate diverse pipeline designs. The round section shape and thickness options from Sch 10 to XXS make them suitable for a wide range of pressure and temperature conditions. Packaging options include sturdy wooden cases or pallets, and lead times typically range from 2 to 4 weeks.

FAQ's of WPHY 42 Carbon Steel Reducing Cross Fitting:

Q: How is the WPHY 42 Carbon Steel Reducing Cross Fitting manufactured?

A: These fittings can be manufactured using either seamless or welded processes. Both methods ensure a durable and strong component that meets the strict requirements of ASTM A860, MSS SP-75, and ASME B16.9 standards.

Q: What are the typical applications of this reducing cross fitting?

A: WPHY 42 reducing cross fittings are widely used in oil & gas pipelines, petrochemical plants, power generation facilities, and water supply systems, enabling the connection and transition of different pipe sizes within a network.

Q: When should I choose seamless over welded fittings?

A: Seamless fittings are recommended for high-pressure or critical applications requiring superior strength and integrity. Welded fittings are suitable for less demanding applications and may offer cost benefits for larger diameters.

Q: Where can these fittings be installed?

A: They are designed for installation in demanding environments such as offshore/onshore oilfields, chemical processing plants, power plants, and municipal water distribution systems, where high performance and durability are essential.

Q: What testing ensures the reliability of each fitting?

A: Every fitting undergoes 100% radiography or hydrostatic testing to ensure leak-free operation and structural soundness. This rigorous quality control guarantees compliance with industry safety standards.

Q: How does the anti-corrosion treatment benefit the fitting?

A: The application of black paint or anti-rust oil provides excellent corrosion resistance, shielding the fitting from moisture, chemicals, and harsh conditions, thus prolonging its service life.

Q: What customization options are available for size and length?

A: Fittings can be manufactured with outer diameters from 1/2 inch to 48 inches and customized lengths to meet the precise requirements of your piping system. Various thicknesses and surface treatments are also available.
