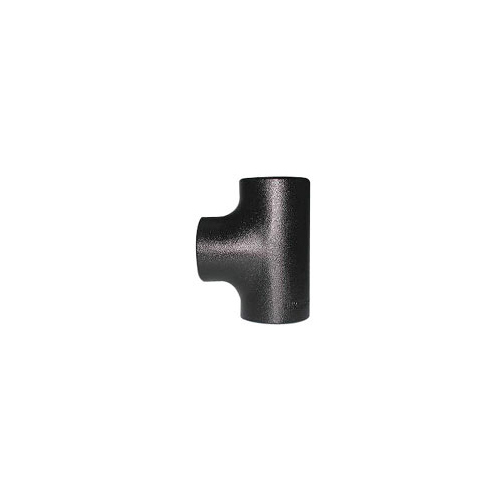

WPHY 42 Carbon Steel Tee Fitting

Get a Price/Quote

WPHY 42 Carbon Steel Tee Fitting Specification

Coating Type
Black Paint or Rust Proof Coating

Diameter
Custom/As ordered

Temperature Range
-20C to +120C

Yield Strength
290 MPa (Min)

Flexibility
Rigid

Tensile Strength
415 MPa (Min)

Bend Radius
As Per Standard

Tolerance
0.5 mm

Connection Type
Welded

Sealing Type
Metal to Metal

Thread Type
Non-threaded (Buttweld)

Product Type
Tee Fitting

Material
Carbon Steel

Connection
Buttweld

Shape
Tee (T-shape)

Standard
ASTM A860 / MSS SP 75

Surface Treatment
Black Painting / Anti-rust Coating

Outer Diameter
1/2 inch to 48 inch (DN15-DN1200)

Section Shape
Round

Length
As per standard or customer requirement

Thickness
Sch40, Sch60, Sch80, Sch120 (Varies by Specification)

Color
Black

Usage
Pipe Connection

Rated Pressure
Class 150 2500

Material Grade
WPHY 42

Application
Oil, Gas, Petrochemical, Power Plant, Pipeline Engineering

End Type
Beveled Ends

Weight
Varies by Size and Thickness

Feature
High Strength, Leak Proof, Durable

Packing
Wooden Cases / Pallets / As per requirement

Corrosion Resistance
Medium

Inspection
100% Radiography, PMI, Hydro Tested

Manufacturing Process
Hot Formed / Cold Formed

About WPHY 42 Carbon Steel Tee Fitting

Looking for WPHY 42 TEE, Reducing TEE, WPHY 42 Straight TEE in specific standards & size at Factory Rate?
Tee pipe fitting manufacturers
We are manufacturer of WPHY 42 Reducing TEE, WPHY 42 Straight TEE and supply high quality WPHY 42 Reducing TEE & WPHY 42 Straight TEE in both large and small quantities worldwide & offer you the best prices in the market.
Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 42 Fittings Size	Seamless:from 1/2 to 24
WPHY 42 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 42 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 42 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 42 Fittings Type	Seamless / Welded / Fabricated
WPHY 42 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 42 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Engineered for Strength and Reliability

WPHY 42 Carbon Steel Tee Fittings are recognized for their exceptional tensile and yield strengths. With a minimum tensile strength of 415 MPa and a yield strength of 290 MPa, these tees provide robust connections for critical pipelines while maintaining leak-proof and durable service life even in demanding conditions.

Precision Manufacturing and Rigorous Inspection

Our fittings are manufactured through hot and cold forming processes and are subject to 100% radiography, PMI, and hydro testing to ensure strict adherence to quality standards. This comprehensive inspection process guarantees that every fitting meets both functional and safety requirements.

Custom Solutions for Industrial Applications

With outer diameters ranging from 1/2 inch to 48 inches and various wall thicknesses (Sch40, Sch60, Sch80, Sch120), our carbon steel tees cater to a wide array of custom pipeline configurations. We accommodate special project needs with tailored coatings, packaging, and dimensions to precisely match your specifications.

FAQ's of WPHY 42 Carbon Steel Tee Fitting:

Q: How are WPHY 42 Carbon Steel Tee Fittings manufactured?

A: These tee fittings are produced using hot formed or cold formed methods depending on project requirements. The process results in high mechanical strength and consistent dimensional accuracy, ensuring the fittings are suitable for critical pipeline systems.

Q: What inspection and testing procedures do these fittings undergo?

A: WPHY 42 tees are subject to a rigorous 100% radiography inspection, Positive Material Identification (PMI), and hydro testing. These procedures ensure the fittings are free from defects and meet international quality and safety standards.

Q: When should I use a WPHY 42 Carbon Steel Tee Fitting in my project?

A: These fittings are recommended for high-pressure and high-temperature pipeline systems in sectors like oil, gas, petrochemical, and power plants, especially when robust, leak-proof joints and medium corrosion resistance are required.

Q: Where can these tee fittings be applied?

A: WPHY 42 Carbon Steel Tee Fittings are broadly used in pipeline engineering, oil and gas transport, petrochemical processing, and power generation industries, providing reliable performance in both onshore and offshore environments.

Q: What benefits does the black painting or anti-rust coating provide?

A: The black painting or anti-rust coating enhances the tee's resistance to corrosion, extending its service lifespan even in harsh operating environments. This ensures the fittings retain integrity and reduce maintenance needs.

Q: How is the correct tee fitting size and thickness determined for my application?

A: The appropriate size and wall thickness are selected based on pipeline pressure rating, temperature conditions, and specific engineering requirements of your system. Our tees are available in Sch40, Sch60, Sch80, and Sch120 with sizes from DN15 to DN1200.
