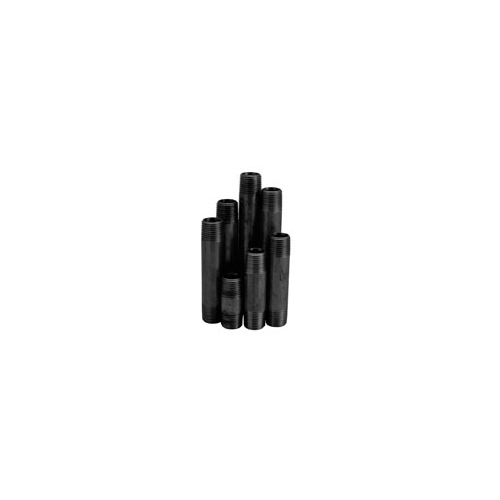

WPHY 70 Carbon Steel Pipe Nipples

Get a Price/Quote

WPHY 70 Carbon Steel Pipe Nipples Specification

Sealing Type
Threaded Seal / Welded

Bend Radius
As per standard or custom

Tolerance
0.5 mm

Temperature Range
-20C to 120C

Connection Type
Male Threaded, Plain End, Bevelled End

Flexibility
Rigid

Tensile Strength
Not less than 485 MPa

Coating Type
Black Painting / Anti-rust Coating

Yield Strength
Not less than 485 MPa

Thread Type
NPT / BSPT

Diameter
1/2 to 48

Product Type
Pipe Nipples

Material
Carbon Steel

Connection
Threaded / Plain End

Shape
Cylindrical

Standard
ASTM A860 / ASME SA860

Surface Treatment
Black Painted or Bare

Outer Diameter
1/2 to 48 (12.7mm to 1219mm)

Section Shape
Round

Length
Custom Lengths as per requirement (up to 6000mm)

Thickness
Sch 40 to Sch 160

Color
Black

Usage
Oil & Gas, Petrochemical, Power Plant, Water Treatment

Rated Pressure
Up to 6000 PSI

Material Grade
WPHY 70

Application
Pipeline connection, High-pressure line, Process piping

Compliance
ANSI, ASME, ASTM

Elongation
20% (min)

ISO Approved
Yes

Manufacturing Process
Hot Finished / Cold Drawn

Gross Weight
As per size and schedule

Hardness
Max 248 HB

Testing
Hydrostatic Test, Non-Destructive Test (NDT)

MOQ
10 Pieces

Heat Treatment
Quenched and Tempered

Quality Control
100% inspected prior to dispatch

End Type
Plain, Beveled, or Threaded

Corrosion Resistance
Good due to anti-rust coating

Lead Time
2 to 4 Weeks

Packing
Bundle with plastic caps or end protectors

About WPHY 70 Carbon Steel Pipe Nipples

OUR EXPORT MARKET: Dubai, UAE, Malaysia, South Africa, Iran, Singapore, Canada, Colombia

TEST CERTIFICATE

Mill Test Certificate as per EN 10204 / 3.1B

Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

WPHY 70 equivalent
A860 WPHY 70	A860 Grade WPHY 70 Fittings
A694 WPHY 70	A694 Grade F70 Flanges
A234 WPHY 70	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 70 Fittings Size	Seamless:from 1/2 to 24
WPHY 70 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 70 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 70 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 70 Fittings Type	Seamless / Welded / Fabricated
WPHY 70 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 70 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Precision Engineering & Versatile End Types

Crafted to exacting tolerances of 0.5 mm, WPHY 70 Carbon Steel Pipe Nipples are available with plain, beveled, or threaded ends, accommodating various pipeline configurations. Manufactured for adaptability, they fit sizes from 1/2" to 48" and are compatible with NPT or BSPT threads, offering reliable sealing for threaded or welded connections in demanding projects.

Rigorous Testing for Superior Performance

Each pipe nipple is subjected to both hydrostatic and non-destructive testing, ensuring structural integrity and leak-proof performance under high pressure. With 100% inspection prior to dispatch and compliance with ANSI, ASME, and ASTM standards, customers are assured of product quality and consistent performance for critical applications.

Enhanced Corrosion Resistance & Surface Protection

With black painting or anti-rust coatings, these nipples demonstrate good corrosion resistance, making them suitable for harsh environments. The robust surface treatment safeguards the steel, extending service life and minimizing maintenance in industrial settings.

FAQs of WPHY 70 Carbon Steel Pipe Nipples:

Q: How are WPHY 70 Carbon Steel Pipe Nipples manufactured and tested for quality?

A: WPHY 70 pipe nipples are produced through either hot finished or cold drawn processes, followed by heat treatment (quenching and tempering). Each nipple undergoes hydrostatic and non-destructive testing. Additionally, 100% inspection is carried out prior to dispatch to ensure compliance with ISO and ASTM/ASME standards.

Q: What end connection types are available, and how do you select the suitable one?

A: These pipe nipples are provided with plain, beveled, or threaded ends, and support both NPT and BSPT thread types. The selection depends on your systems requirementsthreaded for easy assembly and disassembly, beveled for welding, or plain for general purpose use.

Q: When can I expect delivery after placing an order, and what is the minimum order quantity?

A: The standard lead time for WPHY 70 pipe nipples is 2 to 4 weeks from order confirmation, with a minimum order quantity of 10 pieces. Custom lengths and packing requirements may affect lead times.

Q: Where are these pipe nipples commonly used?

A: WPHY 70 Carbon Steel Pipe Nipples are widely used in oil and gas transmission, petrochemical plants, power plants, water treatment facilities, and high-pressure process piping. Their impressive pressure and temperature ratings make them ideal for demanding industrial applications.

Q: What are the main benefits of using WPHY 70 Carbon Steel Pipe Nipples?

A: Key benefits include high strength (yield and tensile strength 485 MPa), reliable corrosion resistance due to anti-rust coatings, versatility in connection types and sizes, and compliance with stringent international standards, ensuring safe and long-lasting joint solutions.

Q: What surface treatments are available, and how do they enhance performance?

A: Pipe nipples can be supplied with either black painted or bare surfaces, along with anti-rust coatings. These treatments protect against corrosion and environmental damage, making the product suitable for use in severe industrial settings.
