WPHY 52 Carbon Steel 180 Degree SR Return Bend

Send Inquiry

Request To Call Back

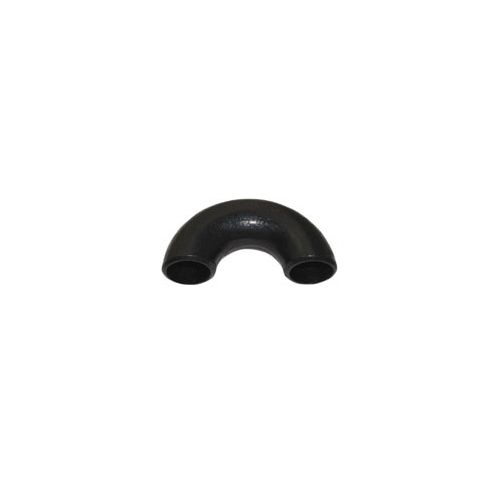

WPHY 52 Carbon Steel 180 Degree SR Return Bend

Get a Price/Quote

WPHY 52 Carbon Steel 180 Degree SR Return Bend Specification

Diameter
Various sizes available

Flexibility
Rigid

Temperature Range
-20C to 120C

Tensile Strength
485 MPa (min)

Bend Radius
SR (Short Radius), 1D

Yield Strength
360 MPa (min)

Sealing Type
Welded Joint

Connection Type
Welded

Tolerance
0.5 mm

Coating Type
Black Paint / Primer

Product Type
180 Degree SR Return Bend

Material
WPHY 52 Carbon Steel

Connection
Butt Weld

Shape
U-Bend (Return Bend)

Standard
ASTM A860 MSS-SP-75

Surface Treatment
Black Painted / Anti-Rust Oil Coated

Outer Diameter
1/2 to 48 (DN15 to DN1200)

Section Shape
Round

Length
Custom as per requirement

Thickness
Sch 40 / Sch 80 / Custom

Color
Black

Usage
Piping Systems / Fluid Transportation

Rated Pressure
Up to 6000 PSI

Material Grade
WPHY 52

Application
Oil, Gas, Petrochemical, Power, Water

Impact Test
Available on Request

Standards Compliance
API 5L, ASME B16.49

Edge Type
Beveled

Marking
Size, Material Grade, Standard, Heat Number

Quality Test
100% Radiography, Hydro Test as per standards

Corrosion Resistance
Yes, due to surface coating

Heat Treatment
Normalizing, Quenching & Tempering (as required)

Production Process
Hot Induction Bend / Cold Formed

MOQ
10 pieces (depends on size)

End Type
Plain, Beveled Ends

About WPHY 52 Carbon Steel 180 Degree SR Return Bend

Product: Buttweld 180 Short Radius Elbow

Sizes: 1/2 TO 36 (SEAMLESS UPTO 24) (WELDED 8 TO 36 )

Standards: ANSI B 16.9
ASTM A403 ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel Buttwelding Short Radius Elbows and Returns
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)

Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

WPHY 52 equivalent
A860 WPHY 52	A860 Grade WPHY 52 Fittings
A694 WPHY 52	A694 Grade F52 Flanges
A234 WPHY 52	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 52 Fittings Size	Seamless:from 1/2 to 24
WPHY 52 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 52 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 52 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 52 Fittings Type	Seamless / Welded / Fabricated
WPHY 52 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 52 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Testing	Direct reading spectrometer, Mechanical testing, Super living inspection, Magnetic particle inspection, etc

Surface treatment	Sand Rolling, Sand Blasting ,Acid Cleaning
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Note
Other Grade Available	A-350 LF2, ASTM B-333
OTHER FORMS	Compression Fitting / Instrumentation / Hydraulic Fitting / & Also As Per Drawing
Test Certificate	Manufacturer Test Certificate / IBR Test Certificate (Form III-C), Under Third Party Inspection & with Excise Gate Pass to avail Modvat benefit.
Specialize	Long Bend with Radius R = 3D, 5D & 10D Pigabble Bend & IBR Fittings

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Precision Manufacturing for Superior Strength

WPHY 52 Carbon Steel Return Bends are produced using both hot induction and cold forming processes, allowing for exceptional structural integrity. Each fitting undergoes normalizing, quenching, and tempering as required, ensuring optimal strength and toughness. With high tensile and yield strength, these bends are dependable in high-pressure environments.

Tested and Certified to Global Standards

Every bend is subjected to comprehensive quality assurance procedures including 100% radiography and hydro testing in line with ASTM A860 MSS-SP-75, API 5L, and ASME B16.49. Markings include size, material grade, standard, and heat number for traceability, supporting project specifications and compliance.

Versatile Applications and Customization

Available in a wide range of sizes, thicknesses, and coatings, the WPHY 52 return bend is suitable for fluid transportation in oil, gas, petrochemical, power, and water industries. Custom lengths and diameters can be manufactured to meet project requirements, with a low minimum order quantity for flexibility.

FAQs of WPHY 52 Carbon Steel 180 Degree SR Return Bend:

Q: How is the WPHY 52 Carbon Steel 180 Degree SR Return Bend manufactured?

A: This bend is produced using hot induction bending or cold forming processes, followed by normalizing and, if required, quenching and tempering, resulting in enhanced strength and durability.

Q: What standards does this return bend comply with?

A: It complies with ASTM A860 MSS-SP-75, API 5L, and ASME B16.49 standards, ensuring reliability and suitability for critical piping systems.

Q: When should I specify impact testing for this product?

A: Impact testing is available upon request and is recommended for applications expecting low-temperature exposure or as per project-specific requirements.

Q: Where can this return bend be used?

A: The WPHY 52 SR Return Bend is ideal for oil, gas, petrochemical, power generation, and water piping systems that require reliable and high-strength fittings.

Q: What quality tests are conducted on each piece?

A: Each fitting undergoes 100% radiography and hydrostatic testing in accordance with industry standards to ensure flaw-free performance.

Q: How does the product resist corrosion?

A: Corrosion resistance is achieved by applying a black paint or anti-rust oil coating, protecting the surface from moisture and environmental factors.

Q: What are the benefits of using WPHY 52 grade material?

A: WPHY 52 offers a minimum tensile strength of 485 MPa and yield strength of 360 MPa, providing high pressure resistance and mechanical reliability in demanding applications.
