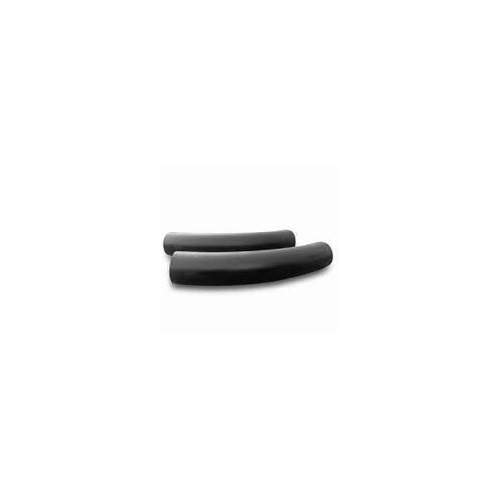

WPHY 60 Carbon Steel Pipe Bend And Piggable Bend

Get a Price/Quote

WPHY 60 Carbon Steel Pipe Bend And Piggable Bend Specification

Diameter
Up to 1220 mm

Tolerance
0.5 mm

Tensile Strength
415 MPa

Flexibility
High

Coating Type
Epoxy, Black Paint, Custom Coatings

Connection Type
Butt Weld

Bend Radius
1D, 1.5D, 2D, 3D, 5D and Custom

Sealing Type
Metal to Metal

Temperature Range
-20C to 120C

Yield Strength
415 MPa

Product Type
Pipe Bend and Piggable Bend

Material
WPHY 60 Carbon Steel

Connection
Welded

Shape
Bend

Standard
ANSI/ASME B16.9, MSS-SP-75

Surface Treatment
Black Painted / Anti-rust Coated

Outer Diameter
1/2 to 48

Section Shape
Round

Length
Customized as required

Thickness
Sch 20 to Sch XXS

Color
Black

Usage
Oil & Gas, Pipeline Systems

Rated Pressure
Up to 1500 PSI

Application
Pipeline Fittings, Pigging Applications

Material Grade
WPHY-60

Corrosion Resistance
Enhanced for harsh environments

Industry Standards
Compliant with international norms (API, ASTM, ANSI)

Impact Strength
Conforms to ASTM and MSS standards

Packaging
Wooden Cases, Pallet, or as Required

Manufacturing Process
Cold Bend, Induction Bend, Hot Bend

Compatibility
Suitable for all major pipeline systems

Inspection
100% Hydrostatic & Non-destructive Testing

Minimum Order Quantity
Dependent on Size and Specifications

Custom Options
Available for Size, Length, Coating, And Thickness

End Type
Smooth / Bevelled

Weight
Varies by Dimension and Thickness

About WPHY 60 Carbon Steel Pipe Bend And Piggable Bend

RANGE : 2NB TO 18NB IN SCH: 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75

TYPE : SEAMLESS / WELDED/ FABRICATED

Form : Long radius Bend, Piggable Bend, Hot bend, With R=3D, 5D, 6D, 8D, 10D & Customized Bend

Offer : Minimum Wall Thinning rate & Ovality, No Wrinkles
Piggable Bend

Alloy Steel Piggable Bend
ASTM A 234 WP-P5, P9, P11, P12, P21, P22 & P91

Carbon Steel Piggable Bend
ASTM A 234 WPB,

Low Temperature Carbon Steel Piggable Bend
ASTM A 234 WPB

Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

WPHY 60 equivalent
A860 WPHY 60	A860 Grade WPHY 60 Fittings
A694 WPHY 60	A694 Grade F60 Flanges
A234 WPHY 60	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Product Name	Pipe Fittings, Buttweld Fittings, Reducer, Elbow, tee
Material	A234 WPB A105 A283-D A135-A A53-A A106-A A179-C A214-C A192 A226 A315-B A53-B A106-B A106-C A178-C A210-A-1 A210-C
Size	Size 1/4 to 48 Outside Diameter 13.7 mm to 1219 mm
Standard	ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640DIN 2605 DIN2615 DIN2616 DIN2617 GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634 JIS B2311 JISB2312 JISB2313 JISB2316 ISO 3419-1981 ISO5251-1981
Certificates	API5L, ISO 9001:2008,SGS, BV,CCIC
Wall thickness	SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Surface Treatment	black paint, varnish, oil, galvanized, anti corrosion coatings
Marking	Wooden case & pallet
Pipe Ends	Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)
Pipe Length	1. Single Random Length and double Random Length. 2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length 3. fixed length(5.8m, 6m, 12m)
Packaging	Loose package; Packaged in bundles (2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.
Test	Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.
Application	liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe.
Why us?	1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port.

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Precision Engineering and Durability

Each WPHY 60 Carbon Steel Pipe Bend is crafted using advanced cold, hot, or induction bending techniques, delivering precise dimensions with a tight 0.5 mm tolerance. The enhanced corrosion resistance and robust metal-to-metal sealing ensure longevity in challenging oil and gas pipeline environments. Conforming to international standards like ASTM, ANSI, and MSS-SP-75, users can trust their performance and reliability for critical applications.

Versatility and Customization Options

Our bends accommodate various sizes (diameter up to 1220 mm, outer diameter from 1/2 to 48 inches), bend radii (1D through 5D and custom), and wall thicknesses, with a weight that varies according to dimensions. Clients can specify length, coating (epoxy, black paint, or custom), and packaging. This flexibility allows integration into all major pipeline systems, supporting both new and retrofit deployments.

FAQ's of WPHY 60 Carbon Steel Pipe Bend And Piggable Bend:

Q: How are WPHY 60 Carbon Steel Pipe Bends manufactured and inspected?

A: These pipe bends are made using cold, hot, or induction bending processes, with rigorous 100% hydrostatic and non-destructive testing to guarantee structural integrity and compliance with standards such as ASTM and MSS-SP-75.

Q: What applications are ideal for WPHY 60 Pipe Bends and Piggable Bends?

A: They are optimized for oil and gas pipelines, pigging operations, and high-pressure pipeline systems, offering superior impact strength and corrosion resistance in harsh environments.

Q: When should I choose a smooth end versus a bevelled end for a pipe bend?

A: Smooth ends are typically used for slip-on connections or specific pipeline joining methods, while bevelled ends are ideal for butt-weld connections to ensure a secure, leak-free joint.

Q: Where are these pipe bends compatible and compliant?

A: WPHY 60 bends are designed to integrate seamlessly with all major pipeline infrastructures and are compliant with international standards including API, ASTM, ANSI, and MSS, making them suitable for global projects.

Q: What are the customizable options available for these bends?

A: Clients can specify size, shape, length, wall thickness, bend radius, coating type, and packaging to meet precise project requirements.

Q: How do these pipe bends enhance pipeline performance in harsh environments?

A: With high tensile and yield strength (415 MPa) and advanced anti-rust coatings, these bends maintain structural reliability and resistance to environmental stressors, ensuring extended service life.
