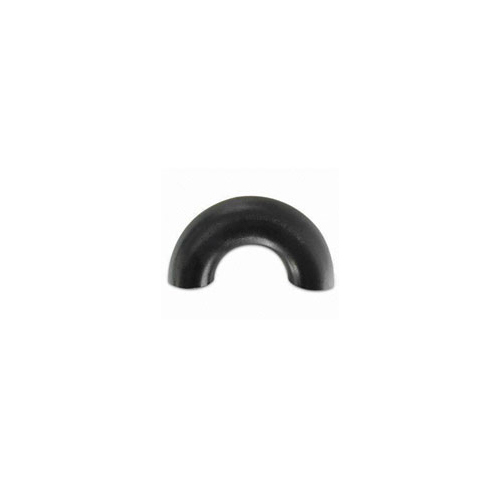

WPHY 70 Carbon Steel 180 Degree LR Return Bend

Send Inquiry

Request To Call Back

WPHY 70 Carbon Steel 180 Degree LR Return Bend

Get a Price/Quote

WPHY 70 Carbon Steel 180 Degree LR Return Bend Specification

Connection Type
Welded

Diameter
15 mm to 1200 mm

Bend Radius
Long Radius (LR), 1.5D

Temperature Range
-20C to 593C

Sealing Type
Metal to Metal

Tensile Strength
760 MPa (minimum)

Coating Type
Black Paint or as per customer specification

Yield Strength
485 MPa (minimum)

Flexibility
Rigid

Tolerance
0.5 mm

Product Type
180 Degree LR Return Bend

Material
WPHY 70 Carbon Steel

Connection
Butt Weld

Shape
Return Bend

Standard
ASME/ANSI B16.9, MSS-SP-75

Surface Treatment
Black Painted / Anti-rust Coated

Outer Diameter
1/2 inch to 48 inch (DN15 to DN1200)

Section Shape
Round

Length
As per Standards or Customer Requirement

Thickness
Sch 10 to Sch 160, STD, XS, XXS (as per requirement)

Color
Black

Usage
Pipeline, Oil & Gas, Petrochemical, Power Plants

Rated Pressure
Up to 6000 PSI

Application
High Pressure Pipelines, Fluid Handling, Chemical Processing

Material Grade
WPHY 70

Custom Fabrication
Available upon request

Production Process
Hot Formed, Cold Worked, Stress Relieved

Corrosion Resistance
High

Packing Details
Wooden Cases, Palletized, Custom Packaging as per request

Marking
Standard Marking as per Specification

Impact Test
Available on request (as per standard)

Compliance
NACE MR0175, ISO 9001:2015 Certified

End Type
Beveled Ends

Minimum Order Quantity
As per requirement

Hardness
217 HB max

About WPHY 70 Carbon Steel 180 Degree LR Return Bend

OUR EXPORT MARKET: Dubai, UAE, Malaysia, South Africa, Iran, Singapore, Canada, Colombia
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

WPHY 70 equivalent
A860 WPHY 70	A860 Grade WPHY 70 Fittings
A694 WPHY 70	A694 Grade F70 Flanges
A234 WPHY 70	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 70 Fittings Size	Seamless:from 1/2 to 24
WPHY 70 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 70 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 70 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 70 Fittings Type	Seamless / Welded / Fabricated
WPHY 70 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 70 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Precision Engineering for Demanding Applications

Engineered for reliability, the WPHY 70 Carbon Steel 180 Degree LR Return Bend meets stringent global standards like ASME/ANSI B16.9 and MSS-SP-75. Precision production, combined with comprehensive quality checks-such as impact tests as per standards-ensures its performance in high-pressure and high-temperature pipeline systems across critical industries.

Versatile Specifications for Custom Needs

This return bend is available in sizes from 1/2 inch to 48 inches with a bend radius of 1.5D in a long radius (LR) configuration. High dimensional accuracy (tolerance of 0.5 mm), thick wall options (Sch 10 to Sch 160, STD, XS, XXS), and flexible packaging solutions ensure readiness for various project needs-be it standard or custom.

Assured Quality and Compliance

Manufactured by ISO 9001:2015 certified processes, and compliant with NACE MR0175, the product provides industry-trusted corrosion resistance and mechanical strength. Standard or custom markings enable traceability, while the choice of black paint or anti-rust coatings secures long-term integrity even in demanding environments.

FAQ's of WPHY 70 Carbon Steel 180 Degree LR Return Bend:

Q: How is the WPHY 70 Carbon Steel 180 Degree LR Return Bend manufactured?

A: This return bend is produced using a hot forming and cold working process, followed by stress relieving. This manufacturing sequence ensures optimal mechanical properties, precise dimensions, and a durable structure suitable for high-pressure and high-temperature applications.

Q: What are the typical applications of this return bend fitting?

A: The WPHY 70 180 Degree LR Return Bend is widely used in high-pressure pipelines, oil & gas networks, chemical processing plants, power plants, and fluid handling systems, especially where corrosion resistance and mechanical strength are critical requirements.

Q: When should an impact test be requested for this product?

A: An impact test is available upon request and is recommended when the operating environment entails low temperatures or when required by specific project standards to ensure the material's toughness and reliability under dynamic loading.

Q: Where can custom fabrication or marking be applied to this return bend?

A: Custom fabrication, including special dimensions, coatings, or markings, can be provided on request. These services are available for projects needing specific identification or tailored fitting design to meet unique installation or regulatory needs.

Q: What is the benefit of the high corrosion resistance in this product?

A: High corrosion resistance, achieved through quality material selection and protective coatings, ensures long-term performance in harsh fluid or chemical environments, minimizing maintenance costs and extending pipeline service life.

Q: How is the product typically packaged and delivered?

A: Products are packed in wooden cases, palletized, or custom packaging as per customer requirements to ensure safe delivery and prevent damage during transportation, regardless of destination.

Q: What surface treatments are applied to this return bend?

A: The standard surface treatment is black painting or anti-rust coating. However, customer-specific coatings can also be provided to match environmental or operational needs, enhancing the product's longevity.
