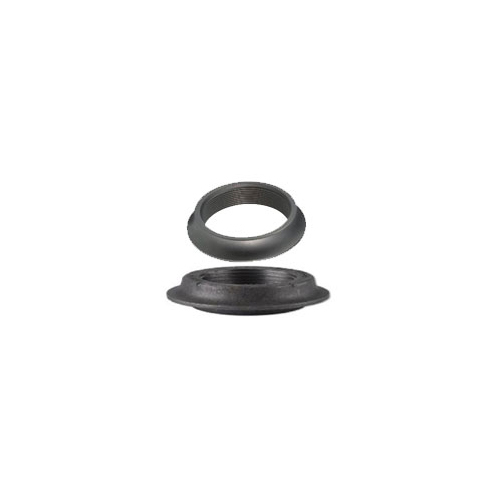

WPHY 70 Carbon Steel Forged And Plate Cut Rings

Send Inquiry

Request To Call Back

WPHY 70 Carbon Steel Forged And Plate Cut Rings

Get a Price/Quote

WPHY 70 Carbon Steel Forged And Plate Cut Rings Specification

Connection Type
Welded

Diameter
50 mm to 1000 mm

Temperature Range
-46C to 120C

Bend Radius
Customized

Tensile Strength
485 MPa min

Sealing Type
Metal to Metal

Tolerance
0.5 mm

Flexibility
Rigid

Yield Strength
485 MPa min

Coating Type
Black Paint / Oil Coating

Product Type
Forged and Plate Cut Rings

Material
Carbon Steel

Connection
Welded

Shape
Ring

Standard
ASTM A860 / MSS SP 75 / ASME B16.9

Surface Treatment
Black Painted / Anti-Rust Oil Coated

Outer Diameter
50 mm to 1000 mm

Section Shape
Round

Length
Customizable

Thickness
5 mm to 100 mm

Color
Black

Usage
Pipeline Fittings / Flanges

Rated Pressure
Class 150 to 2500

Application
Oil & Gas, Petrochemical, Power Plants, Refineries

Material Grade
WPHY 70

MOQ
Negotiable / As per customer

Manufacturing Process
Forged / CNC Machined / Plate Cut

Lead Time
2-4 Weeks (Depending on Quantity)

Hardness
170-235 HB

Heat Treatment
Normalized / Quenched & Tempered

Edge Type
Plain / Beveled

Tested
100% Ultrasonic & Visual Inspected

Corrosion Resistance
High with surface treatment

Density
7.85 g/cm

About WPHY 70 Carbon Steel Forged And Plate Cut Rings

OUR EXPORT MARKET: Dubai, UAE, Malaysia, South Africa, Iran, Singapore, Canada, Colombia
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

WPHY 70 equivalent
A860 WPHY 70	A860 Grade WPHY 70 Fittings
A694 WPHY 70	A694 Grade F70 Flanges
A234 WPHY 70	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 70 Fittings Size	Seamless:from 1/2 to 24
WPHY 70 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 70 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 70 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 70 Fittings Type	Seamless / Welded / Fabricated
WPHY 70 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 70 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Precision Engineering and Versatile Applications

WPHY 70 Carbon Steel Rings are meticulously engineered using advanced forging, CNC machining, and plate-cutting techniques. With customizable thickness, diameter, and length, these rings are ideal for a variety of critical uses, including welded connections in pipelines and flanges. Their high tensile and yield strength, along with reliable performance in temperatures from -46C to 120C, makes them perfect for oil & gas, petrochemical, and power plant applications.

Surface Treatment and Corrosion Resistance

These rings are protected by high-quality surface treatments such as black paint or anti-rust oil, providing enhanced resistance to corrosion in harsh environments. This ensures long-lasting durability and reduces maintenance requirements when utilized in demanding settings such as refineries or chemical plants.

Quality Assurance and Testing

Each WPHY 70 carbon steel ring is 100% ultrasonic and visually inspected to ensure structural integrity. The manufacturing processes are in strict adherence to international standards, guaranteeing that every ring meets or exceeds ASTM A860, MSS SP 75, and ASME B16.9 requirements. This commitment to quality assures safety and reliability in critical industrial systems.

FAQs of WPHY 70 Carbon Steel Forged And Plate Cut Rings:

Q: How are WPHY 70 Carbon Steel Rings manufactured?

A: These rings are produced using advanced manufacturing methods such as forging, CNC machining, and plate cutting, depending on the required specifications. All rings undergo normalizing or quenching and tempering as part of their heat treatment for enhanced mechanical properties.

Q: What surface treatments are applied to ensure corrosion resistance?

A: WPHY 70 rings are treated with either black paint or anti-rust oil coatings, significantly improving corrosion resistance. These surface treatments ensure the rings perform reliably in environments exposed to moisture, chemicals, or temperature fluctuations.

Q: When should these forged and plate cut rings be used?

A: They are ideal for use in applications requiring high strength, precision, and durability, especially in oil & gas pipelines, petrochemical facilities, power plants, and refineries where reliable welded connections and resistance to corrosion are essential.

Q: Where can I source these WPHY 70 rings?

A: As a distributor, exporter, importer, manufacturer, supplier, and trader based in India, these rings are available for global supply. Orders can be tailored to customer requirements, with negotiable minimum order quantities and customizable dimensions.

Q: What are the main benefits of using WPHY 70 Carbon Steel Rings?

A: Key benefits include high tensile and yield strength, superior corrosion resistance, flexibility in size and thickness, robust weldability, and compliance with major industry standards. Their durability and precision manufacture make them well-suited for high-pressure, high-temperature applications.

Q: How does the inspection and testing process work?

A: Every ring is subjected to 100% ultrasonic and visual inspection to confirm dimensional accuracy and structural integrity. This rigorous testing process ensures that only defect-free rings are supplied for critical industrial use.

Q: What is the typical lead time and order flexibility?

A: Standard lead times range from 2 to 4 weeks, depending on the size and quantity required. Minimum order quantities are negotiable, offering flexibility for both small and large-scale projects.
