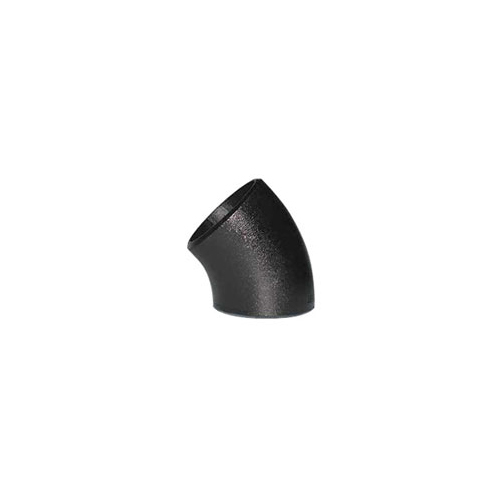

WPHY 70 Carbon Steel 45 Degree Elbows

Get a Price/Quote

WPHY 70 Carbon Steel 45 Degree Elbows Specification

Connection Type
Welded

Flexibility
Rigid

Tolerance
0.5mm

Bend Radius
1.5D, 2D (custom available)

Diameter
15 mm to 1200 mm

Sealing Type
Metal to Metal

Tensile Strength
Not less than 485 MPa

Temperature Range
-29C to 427C

Yield Strength
Not less than 485 MPa

Coating Type
Black Epoxy / Anti-corrosive

Product Type
45 Degree Elbow

Material
WPHY 70 Carbon Steel

Connection
Butt Weld

Shape
Elbow

Standard
ASTM A860 / MSS-SP-75

Surface Treatment
Black Painted / Anti-rust Coated

Outer Diameter
1/2 inch to 48 inch (DN15 to DN1200)

Section Shape
Round

Length
As per Standard or Custom

Thickness
SCH40 / SCH80 (customizable)

Color
Black

Usage
Pipeline Bending / Fluid Conveyance

Rated Pressure
Class 150 to 2500 (PN10-PN420)

Material Grade
WPHY 70

Application
Petroleum, Gas, Power, Water, Oil & Gas Industry

Corrosion Resistance
High

End Finish
Bevelled

Manufacturing Process
Cold Formed / Hot Induction Bending

Marking
Size, Spec, Heat No., Manufacturers Details

Impact Test
-46C as per ASTM A860

Lead Time
Ready Stock or 2-4 Weeks

Packaging
Wooden Cases / Pallets

Hardness
235 HB

Hydrostatic Tested
Yes

Availability
Standard and Custom Sizes

About WPHY 70 Carbon Steel 45 Degree Elbows

Looking for WPHY 42 Elbows in specific standards & size at Factory Rate?
We are manufacturer of WPHY 42 Elbows and supply high quality WPHY 42 Elbows in both large and small quantities worldwide & offer you the best prices in the market.
The sizes: Elbow: DN15~DN3600
Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers.

WPHY 70 equivalent
A860 WPHY 70	A860 Grade WPHY 70 Fittings
A694 WPHY 70	A694 Grade F70 Flanges
A234 WPHY 70	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 70 Fittings Size	Seamless:from 1/2 to 24
WPHY 70 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 70 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 70 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 70 Fittings Type	Seamless / Welded / Fabricated
WPHY 70 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 70 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Reliable Performance in Harsh Conditions

WPHY 70 elbows are designed to withstand low temperatures (impact tested at -46C) and high pressures (Class 150-2500). Their black epoxy or anti-corrosive coating enhances durability, making them suitable for oil, gas, petrochemical, and water applications. A bevelled end ensures optimal weld integrity and leak-proof connections, essential for high-performance pipeline systems.

Versatile Manufacturing & Custom Features

These elbows are produced via both cold-formed and hot induction bending processes, offering flexibility in design and application. Available in both standard and custom sizes/thicknesses, they can meet unique project requirements. Clear marking details and predictable lead times (ready stock or 2-4 weeks) facilitate efficient logistics and traceability for every order.

FAQ's of WPHY 70 Carbon Steel 45 Degree Elbows:

Q: How are WPHY 70 Carbon Steel 45 Degree Elbows manufactured?

A: These elbows are produced using either the cold forming or hot induction bending process, followed by surface treatment such as black painting or anti-rust coating. This ensures precise bends, structural integrity, and superior surface protection.

Q: What makes WPHY 70 elbows suitable for the oil, gas, and power industries?

A: They are made from high-strength WPHY 70 carbon steel, have high corrosion resistance, and are tested for impact at -46C as per ASTM A860. Their ability to withstand pressures up to Class 2500 (PN420) makes them ideal for demanding applications in oil, gas, and power sectors.

Q: Where can these elbows be used?

A: WPHY 70 45 Degree Elbows are commonly used in pipeline systems for petroleum, natural gas, power generation, water distribution, and various industrial fluid conveyance systems, particularly where reliable flow redirection and corrosion resistance are essential.

Q: What is the lead time for delivery?

A: These elbows are available in ready stock for quick dispatch, and if not immediately available, production and delivery typically take 2 to 4 weeks, depending on size and customization requirements.

Q: How are the elbows packaged and protected during shipping?

A: They are securely packed in wooden cases or on pallets to prevent mechanical damage and surface defects during transit, ensuring the elbows arrive in perfect condition for installation.

Q: What are the available sizes and thicknesses for these elbows?

A: They are offered in outer diameters ranging from 1/2 inch to 48 inches (DN15 to DN1200) with thickness options including SCH40, SCH80, or custom specifications to suit specific pipeline needs.
