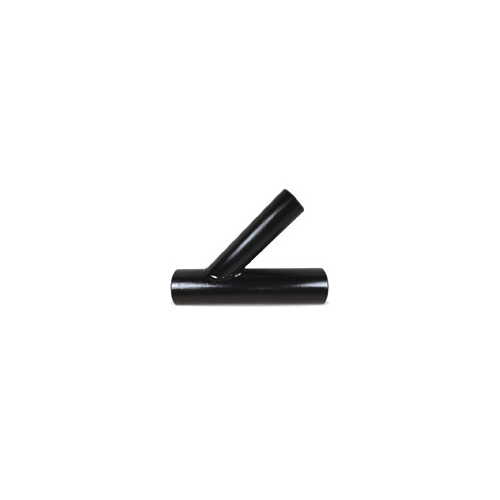

WPHY 70 Carbon Steel Lateral

Get a Price/Quote

WPHY 70 Carbon Steel Lateral Specification

Tolerance
0.5 mm

Temperature Range
-46C to 600C

Sealing Type
Buttweld Joint

Bend Radius
As per standard

Flexibility
Rigid

Coating Type
Black Paint / Varnish / Anti-Rust

Yield Strength
485 MPa

Connection Type
Buttweld

Tensile Strength
485 MPa

Diameter
15 mm to 1200 mm

Product Type
Lateral Pipe Fitting

Material
Carbon Steel

Connection
Buttweld

Shape
Lateral (Y-shaped)

Standard
ASTM A860 / MSS SP 75

Surface Treatment
Black Painted / Anti Corrosion Coated

Outer Diameter
1/2 to 48 (DN15 to DN1200)

Section Shape
Round

Length
Custom as per order

Thickness
Sch40, Sch80, Sch160 or as required

Color
Black

Usage
Pipeline Connection

Rated Pressure
Class 150 to Class 2500

Material Grade
WPHY 70

Application
Oil, Gas, Petrochemical, Power, Water Transmission

Inspection
Ultrasonic / Radiographic / Hydrostatic

Impact Value
Tested as per standard

MOQ
As per company terms

Hardness
180-235 HB

End Type
Bevel End (as per ASME B16.9)

Manufacturing Standard
ASME B16.9, ANSI B16.28

Production Technique
Hot Formed / Cold Formed

About WPHY 70 Carbon Steel Lateral

OUR EXPORT MARKET: Dubai, UAE, Malaysia, South Africa, Iran, Singapore, Canada, Colombia
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Lateral tee pipe fitting manufacturers, reducing lateral tee dimensions
Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers, asme b16.9 lateral tee manufacturer, 45 degree lateral pipe fitting manufacturers

WPHY 70 equivalent
A860 WPHY 70	A860 Grade WPHY 70 Fittings
A694 WPHY 70	A694 Grade F70 Flanges
A234 WPHY 70	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 70 Fittings Size	Seamless:from 1/2 to 24
WPHY 70 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 70 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 70 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 70 Fittings Type	Seamless / Welded / Fabricated
WPHY 70 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 70 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Engineered to Withstand Demanding Conditions

Built to handle pressures from Class 150 to Class 2500 and temperatures ranging from -46C to 600C, WPHY 70 Carbon Steel Laterals offer exceptional durability for pipeline systems. Their superior tensile and yield strengths guarantee stability and performance under challenging operating conditions, making them suitable for critical industrial applications.

Precise Manufacturing Meets International Standards

Every lateral is produced according to strict protocols such as ASME B16.9, ANSI B16.28, and ASTM A860, ensuring dimensional accuracy with a tolerance of 0.5 mm. Quality assurance checks-like ultrasonic, radiographic, and hydrostatic tests-offer confidence in structural integrity and reliability, meeting diverse project specifications.

Versatile Coatings and Customization

Customers can select surface treatments including black paint and anti-corrosion coatings, enhancing the fitting's lifespan and resistance to harsh environments. With flexibility in wall thickness (Sch40, Sch80, Sch160) and customizable lengths, our WPHY 70 laterals seamlessly integrate into various pipeline projects.

FAQ's of WPHY 70 Carbon Steel Lateral:

Q: How is the WPHY 70 Carbon Steel Lateral manufactured?

A: These fittings are produced using hot-formed or cold-formed techniques, ensuring robust mechanical properties and precision. The manufacturing process adheres to international standards such as ASME B16.9 and ASTM A860, with strict quality controls throughout.

Q: What quality inspections do the laterals undergo before shipment?

A: WPHY 70 Laterals are subjected to comprehensive testing, including ultrasonic, radiographic, and hydrostatic inspections. These tests verify the absence of internal defects, confirm material integrity, and ensure the fittings can safely withstand operational pressures.

Q: Where are these lateral fittings commonly used?

A: These laterals are ideal for pipeline connections in sectors such as oil, gas, petrochemical, power generation, and water transmission, where dependable, high-strength fittings are crucial to system performance.

Q: When should I choose a bevel-end buttweld connection?

A: Bevel-end buttweld joints are recommended when a strong, leak-proof connection is necessary, particularly in high-pressure and high-temperature applications. This end type also facilitates smoother flow and easier welding during installation.

Q: What are the main benefits of using WPHY 70 Carbon Steel Laterals?

A: The primary advantages include high strength (tensile and yield 485 MPa), excellent impact resistance, longevity due to anti-corrosion coatings, precise tolerances, and proven reliability under various service conditions.

Q: How can I customize the lateral to fit my project requirements?

A: Options for diameter (15 mm to 1200 mm), wall thickness (Sch40 to Sch160), length, and surface treatment are available. Customization is coordinated based on order specifications and in accordance with the company's minimum order quantity (MOQ) terms.
