WPHY 70 Carbon Steel Reducing Cross Fitting

Send Inquiry

Request To Call Back

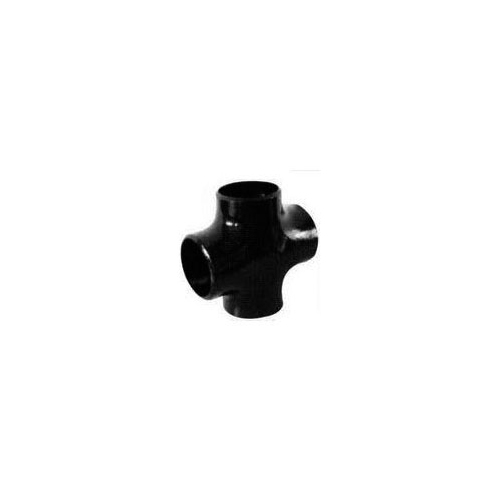

WPHY 70 Carbon Steel Reducing Cross Fitting

Get a Price/Quote

WPHY 70 Carbon Steel Reducing Cross Fitting Specification

Tensile Strength
485 MPa

Diameter
1/2 to 48

Sealing Type
Metal-to-Metal

Temperature Range
-46C to 600C

Yield Strength
485 MPa

Connection Type
Butt Welding

Flexibility
Rigid

Tolerance
0.5 mm

Coating Type
Epoxy / Black Paint

Product Type
Reducing Cross Fitting

Material
Carbon Steel

Connection
Butt Weld

Shape
Cross

Standard
ASTM A860 / MSS SP 75

Surface Treatment
Black Painted / Anti-Rust Coated

Outer Diameter
1/2 to 48 (DN15 to DN1200)

Section Shape
Round

Length
Customizable as per requirements

Thickness
Schedule STD / SCH 40 - SCH 160

Color
Black

Usage
Pipe Jointing and Branching

Rated Pressure
Class 3000 / 6000 / 9000

Material Grade
WPHY 70

Application
Oil, Gas, Petrochemical, Power Plant, and Water Pipeline

Lead Time
2-6 Weeks depending on order

End Type
Beveled Ends as per ASME B16.9

Inspection
100% Radiography, Ultrasonic Tested

Weight
Varies per size, Consult manufacturer

Impact Test
-46C as per EN10216

Packaging
Wooden Cases / Pallets / As required

Manufacturing Process
Hot-Formed & Heat-Treated

Hardness
200 HB max

Corrosion Resistance
Moderate

About WPHY 70 Carbon Steel Reducing Cross Fitting

Product: Buttweld Reducing Cross

Sizes: 1/2 TO 36 (SEAMLESS UPTO 24) (WELDED 8 TO 36 )

Standards: ANSI B 16.9
ASTM A403 ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings API 590-605
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel Buttwelding Short Radius Elbows and Returns
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)

Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 42 Pipe Fittings Manufacturers

WPHY 70 equivalent
A860 WPHY 70	A860 Grade WPHY 70 Fittings
A694 WPHY 70	A694 Grade F70 Flanges
A234 WPHY 70	A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings

Grade Specification	Carbon Steel: ASTM/ASME A234 WPB / A860 MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6
WPHY 70 Fittings Size	Seamless:from 1/2 to 24
WPHY 70 Fittings Size	Welded:from 24 to 96 (or as customer requirements)
WPHY 70 Fittings Degree	22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
WPHY 70 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard	ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Carbon Steel Material	Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc)
	Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc)
	Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc)
WPHY 70 Fittings Type	Seamless / Welded / Fabricated
WPHY 70 Fittings Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
WPHY 70 Fittings Range	NB to 48 NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings)
Dimensions	ANSI/ASME B16.9, B16.28, MSS-SP-43.
Applicable Standards	1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow
Seamless/ Welded 100% Radiography Tested

Standard	Description
ASTM A182/A182M	Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASTM A403/A403M	Wrought austenitic stainless steel piping fittings.
ASTM A815/A815M	Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings.
AS 2129	Flanges for pipes, valves and fittings
ANSI/ASME B1.20.1	Pipe threads, general purpose (inch).
ANSI B16.5	Steel pipe flanges and flanged fittings.
ANSI B16.9	Factory-made wrought steel butt-welding fittings.
ANSI B16.11	Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings
ANSI B16.25	Butt-welding ends.
MSS SP43	Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
BS21	Threading.
ISO 4144	Stainless steel fittings threaded to ISO 7-1.
MSS SP-95	Swage(d) Nipples and Bull Plugs
BS3799	Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B 16.9 ASTM A403 ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
API 590-605 ASME B16.9	Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Buttwelding Short Radius Elbows and Returns

Precision Engineering for Demanding Environments

Our WPHY 70 Carbon Steel Reducing Cross Fittings excel in quality and consistency. Each fitting is manufactured using hot-forming and heat treatment, with strict adherence to ASME B16.9 standards. 100% radiography and ultrasonic testing assure defect-free weldability and integrity, while tested impact resilience at -46C ensures reliability for critical use.

Versatile Applications Across Industries

With a wide operational temperature range of -46C to 600C and rated for high pressures (Class 3000/6000/9000), these fittings seamlessly serve the oil, gas, petrochemical, power generation, and water distribution sectors. The round section and customizable lengths provide flexibility, meeting diverse project specifications.

Reliable Supply and Customization from Leading Indian Supplier

Available in outer diameters from 1/2'' to 48'' and thicknesses SCH 40 to SCH 160, these fittings are supplied by India's trusted distributors, exporters, importers, and manufacturers. Each order is securely packaged and dispatched within 2-6 weeks, and technical support ensures that customers receive optimal solutions tailored to their requirements.

FAQ's of WPHY 70 Carbon Steel Reducing Cross Fitting:

Q: How is the WPHY 70 Carbon Steel Reducing Cross Fitting manufactured?

A: This fitting is produced through a hot-forming and heat-treatment process in compliance with ASME B16.9, ensuring exceptional strength and durability. Each piece undergoes 100% radiography, ultrasonic testing, and impact testing at -46C to meet stringent quality standards.

Q: What applications are suitable for this reducing cross fitting?

A: These fittings are designed for use in oil, gas, petrochemical, power plant, and water pipeline systems, providing branch connections where pipe diameter changes are necessary. Their robust construction supports high-pressure and high-temperature environments.

Q: When should customers specify schedule and pressure class?

A: It's important to specify the required schedule (SCH 40-SCH 160) and rated pressure class (3000/6000/9000) at the time of order to ensure the fitting meets the operational demands and matches existing pipeline parameters.

Q: Where are these fittings typically installed?

A: WPHY 70 reducing cross fittings are installed at points where a main pipeline splits into three branches of varying diameters. Commonly found in refineries, petrochemical complexes, power stations, and water treatment facilities, they are essential for complex piping layouts.

Q: What is the process for quality inspection and certification?

A: Every fitting undergoes comprehensive inspection-including 100% radiography and ultrasonic testing-and impact tests as per EN10216 at -46C. Full documentation, including material traceability and inspection certificates, is provided upon request.

Q: How does the product handle corrosion, and what surface treatments are available?

A: The fitting offers moderate corrosion resistance, which is further enhanced by black paint or anti-rust coatings. For specific projects, epoxy coatings can be applied for additional protection against aggressive environments.

Q: What are the primary benefits of using this reducing cross fitting?

A: Users benefit from its robust construction, reliable sealing via metal-to-metal contact, adaptability to various sizes and pressures, and compliance with international standards, resulting in enhanced safety, durability, and system efficiency.
